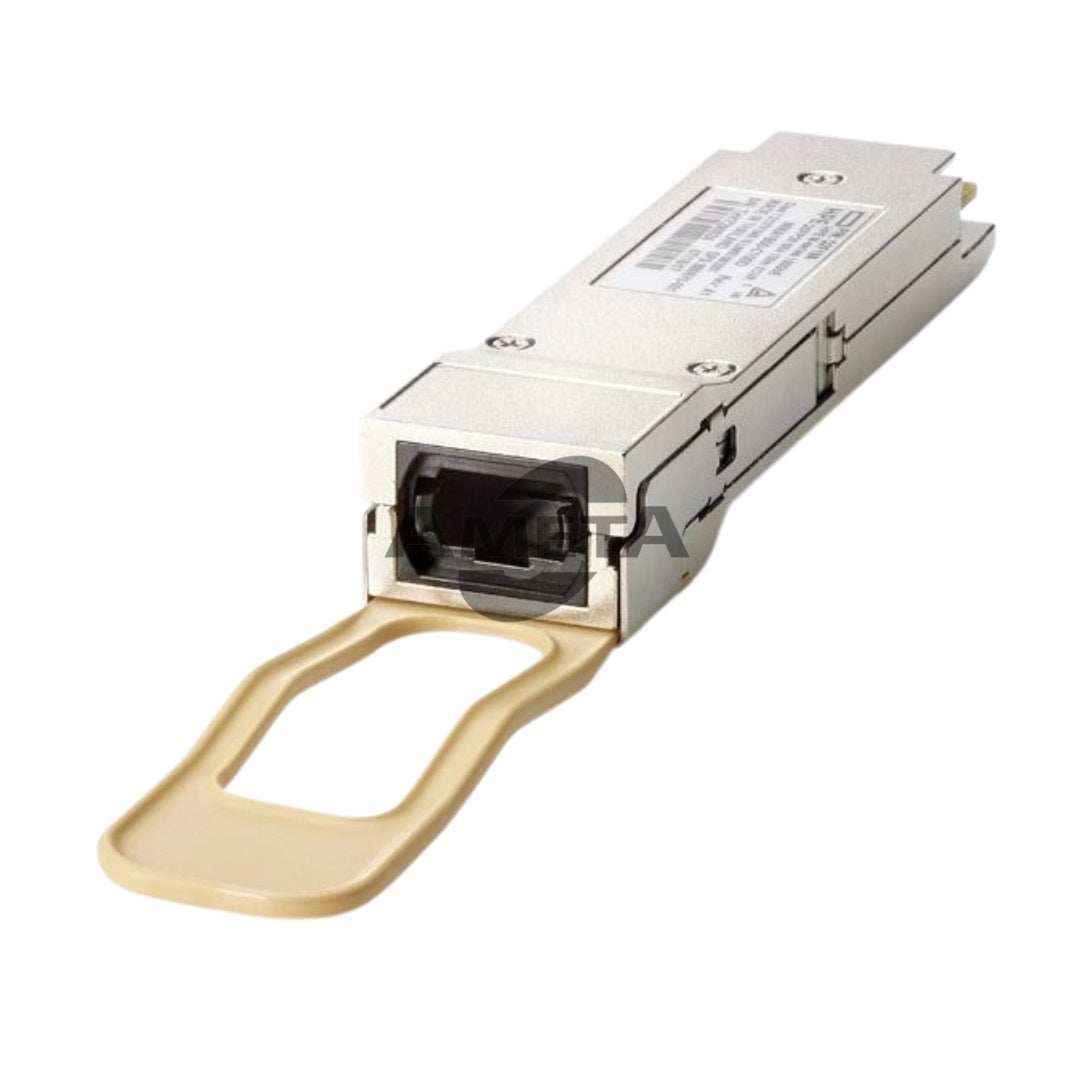

HPE Q2F19A - HPE 100GbE QSFP28 SR4 100m Transceiver
HPE Q2F19A - HPE 100GbE QSFP28 SR4 100m Transceiver
The HPE Q2F19A 100GbE QSFP28 SR4 100m Transceiver is a high-speed optical networking module designed for compatible HPE enterprise networking and data center equipment. It provides 100 Gigabit Ethernet connectivity over multimode fiber, supporting high-bandwidth network links in demanding enterprise environments.
Featuring a 100Gbps data rate, the HPE Q2F19A uses the QSFP28 form factor and 100GBASE-SR4 optical technology. It operates at a nominal wavelength of 850nm and supports transmission distances of up to 100 meters over OM4 multimode fiber or up to 70 meters over OM3 multimode fiber.
The transceiver uses four parallel optical lanes, each operating at approximately 25Gbps, to deliver an aggregate 100Gbps Ethernet connection. Its MPO/MTP multifiber interface enables high-density optical connectivity for compatible switches and network devices.
The HPE Q2F19A is suitable for data center network expansion, high-speed switch interconnections, server aggregation, virtualization infrastructure, and other bandwidth-intensive applications. It provides a compact optical connectivity solution for organizations upgrading or maintaining enterprise 100GbE networks.
The Q2F19A is an optical transceiver module only and does not include fiber-optic cables or networking equipment. Exact switch model, QSFP28 port compatibility, firmware version, fiber type, connector polarity, and supported network configuration should be verified before installation.
Key Features
¤ HPE Part Number: Q2F19A
¤ HPE Spare Part Number: 880970-001
¤ Product Type: Optical Transceiver
¤ Transceiver Form Factor: QSFP28
¤ Ethernet Standard: 100GBASE-SR4
¤ Data Rate: 100Gbps
¤ Optical Wavelength: 850nm
¤ Maximum Reach: 100 meters over OM4 multimode fiber
¤ Maximum Reach: 70 meters over OM3 multimode fiber
¤ Fiber Type: Multimode Fiber (MMF)
¤ Optical Connector: MPO/MTP
¤ Optical Architecture: 4 parallel lanes
¤ Lane Speed: Approximately 25Gbps per lane
¤ Designed for compatible HPE networking equipment
¤ Supports high-speed 100GbE connectivity
¤ Suitable for enterprise data center networks
¤ Ideal for switch-to-switch optical connections
¤ Suitable for network aggregation and virtualization infrastructure
¤ Compact, hot-pluggable QSFP28 module
¤ Transceiver only; fiber-optic cable not included
¤ Exact device, firmware, and fiber compatibility should be verified
Out of stock
Condition: Refurbished
